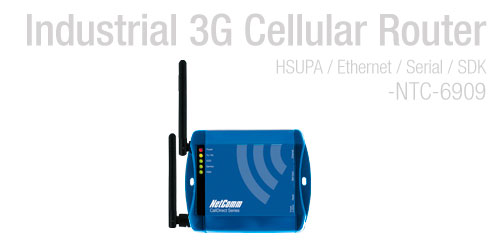

| NTC-6909 Industrial 3G Cellular Router - Ethernet /Serial | Downloads | | Industrial 3G and M2M connectivity for various networks and service types UMTS/HSDPA/HSUPA and GSM/GPRS/EDGE. The NTC-6909 provides full routing capabilities for the support of point-to-point or point-to-multi-point communication links. It accommodates multiple communication interfaces and protocols to meet the requirements of diverse telemetry and WAN applications. Fitted with a tri-band 3G module, the NTC-6909 supports data transfers over most of the world's 3G/HSPA cellular networks. The powerful NTC-6909 hardware platform features a high-speed ARM9-based microcontroller with a generous amount of DRAM and read-writable flash memory. It guaranties flexibility for the development of custom applications onto the device. The embedded Linux operating system and a Software Development Kit (SDK) enable users to tailor and to program the router to specific application needs. This often renders the use of an additional PC terminal obsolete and lowers the total cost of ownership. The NTC-6908 was designed with remote installation and ease-of-setup in mind. By supporting multi-level system monitoring, it gives you the peace of mind that the device will keep the communication lines up and open. | |
- High-speed ARM9 processor / 32MB DRAM / 256MB flash memory
- Data throughput of up to 7.2 Mbps downlink (HSDPA) and 5.76 Mbps uplink (HSUPA)
- Embedded multi-mode HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM module with Qualcomm MSM6290 chipset
- Embedded Linux 2.6.32 operating system and TCP/IP stack
- Autosensing Ethernet interface (RJ-45) for mobile broadband connectivity
- Serial RS-232 interface (DB-9) for M2M connectivity – supports PAD mode
- Integrated GPS support
- Supports SNMP with cellular specific MIB, PPPoE, RIP, VRRP. DDNS, MAC /NET address filtering, Open VPN, DHCP/DHCP relay
- Small form factor, ruggedised enclosure with wall mount option
- DC power terminal with locking plug allows field termination
- Wide operating temperature range -30°C to 70°C
- Wide Input voltage range 8 to 28V DC
- Receive Diversity - two removable SMA antennas
- RoHS compliant – environment-friendly
| 3G Module | Sierra Wireless HSUPA module MC8792 (Qualcomm MSM6290) | | 3G Networks | UMTS/HSDPA/HSUPA: Tri-Band 900/2100/1900 MHz | | 2G Networks | GSM/EDGE/GPRS: Quad-Band 850/900/1800/1900 MHz | | Supported Carriers | Optus, Vodafone | - Ethernet and serial RS-232 connectivity in a single device
- High data speeds for large file transfers in a timely manner
- Economical and flexible alternative to costly fixed-line connection
- Embedded Linux and extensive flash memory allowing for the installation of custom firmware
- SDK available for the development of software for custom applications
- Industrial grade product features - robustness suitable for use in demanding environments
- Small form factor for ease of integration into existing enclosures
- Wide input voltage provides flexibility for diverse environments and applications
- Remote diagnostics and configuration minimises field visits and lowers cost of operation
- Allows secure connection over public cellular network via VPN (IPsec, PPTP, GRE)
- Centralised user interface for easy configuration and management from any web browser
|
