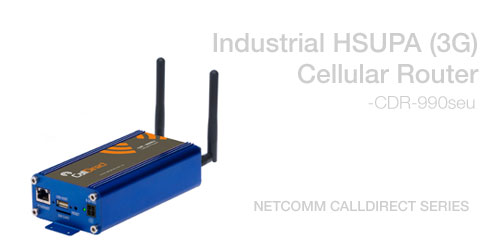

| CDR-990seu Industrial 3G Cellular Router | Downloads | | Industrial mobile broadband and M2M connectivity for various mobile networks and service types UMTS/HSDPA/HSUPA and GSM/GPRS/EDGE. The CDR-990seu allows you to build wide area networks utilizing the superior speeds supported by 3G/HSPA networks. The CDR-990seu provides the user a point-to-point or point-to-multipoint communications link in a single compact and resilient unit. The CDR-990seu is a fully featured router supporting a large number of communication interfaces and protocols, to meet the demands of today’s telemetry and WAN applications. Designed with remote installation in mind the CDR-990seu supports multi-level system monitoring, giving the user peace of mind the device will keep the communication lines up and open. | |
- Data throughput of up to 7.2 Mbps downlink (HSDPA) and 5.76 Mbps uplink (HSUPA)
- Qualcomm MSM6290 chipset
- Embedded Linux operating system and TCP/IP stack
- Ethernet interface (RJ-45) for mobile broadband connectivity
- Serial RS-232 interface (DB-9) for M2M connectivity – supports PAD mode
- USB Host controller for adding external devices like additional memory
- Supports SNMP with cellular specific MIB, PPPoE, RIP, VRRP. DDNS, MAC /NET address filtering, Open VPN, DHCP/DHCP relay
- Ruggedised enclosure with wall mount option
- Wide operating temperature range -30°C to 70°C
- Receive Diversity - two SMA-F connectors for antennas
- 1-year warranty
| 3G Module | Sierra Wireless HSUPA module MC8792 (Qualcomm MSM6290) | | 3G Networks | UMTS/HSDPA/HSUPA: Tri-Band 900/2100/1900 MHz | | 2G Networks | GSM/EDGE/GPRS: Quad-Band 850/900/1800/1900 MHz | - Ethernet and RS-232 serial M2M connectivity in a single device
- High data speeds allow for large file transfers in a timely manner
- Economical and flexible alternative to costly fixed-line connection
- Industrial grade product features - robustness suitable for use in demanding environments
- Wide input voltage provides flexibility for diverse environments and applications
- Remote diagnostics and configuration minimises field visits and lowers cost of operation
- Allows secure connection over public cellular network via VPN (IPsec, PPTP, GRE)
- Centralised user interface for easy configuration and management from any web browser
|
