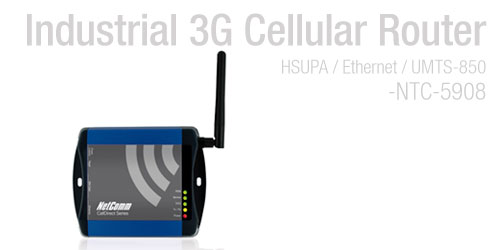

| NTC-5908 Industrial 3G Cellular Router - Ethernet | Downloads | | Industrial NextG™/3G connectivity for various networks and service types UMTS/HSDPA/HSUPA and GSM/GPRS/EDGE. The NTC-5908 provides full routing capabilities for the support of point-to-point or point-to-multi-point communication links. It accommodates multiple communication interfaces and protocols to meet the requirements of diverse WAN applications. Fitted with a tri-band 3G module, the NTC-5908 supports data transfers over most of the world's 3G/HSPA cellular networks. | |
Key Features - Data throughput of up to 7.2 Mbps downlink (HSDPA) and 5.76 Mbps uplink (HSUPA)
- Embedded multi-mode HSUPA/HSDPA/UMTS/EDGE/GPRS/GSM module with Qualcomm MSM6290 chipset
- Embedded Linux operating system and TCP/IP stack
- Auto-sensing Ethernet interface (RJ-45) for mobile broadband connectivity
- Supports SNMP with cellular specific MIB, PPPoE, RIP, VRRP. DDNS, MAC /NET address filtering, Open VPN, DHCP/DHCP relay
- Small form factor, ruggedised enclosure with wall mount option
- DC power terminal with locking plug allows field termination
- Wide operating temperature range -30°C to 70°C
- Wide Input voltage range 8 to 28V DC
- Removable SMA antenna
- RoHS compliant – environment-friendly
| 3G Module | Sierra Wireless HSUPA module MC8790 (Qualcomm MSM6290) | | 3G Networks | UMTS/HSDPA/HSUPA: Tri-Band 850/2100/1900 MHz | | 2G Networks | GSM/EDGE/GPRS: Quad-Band 850/900/1800/1900 MHz | Supported Carriers
| Telstra NextG™ | Benefits - High data speeds allow for large file transfers in a timely manner
- Economical and flexible alternative to costly fixed-line connection
- Industrial grade product features - robustness suitable for use in demanding environments
- Small form factor for ease of integration into existing enclosures
- Wide input voltage provides flexibility for diverse environments and applications
- Remote diagnostics and configuration minimises field visits and lowers cost of operation
- Centralised user interface for easy configuration and management from any web browser
|
